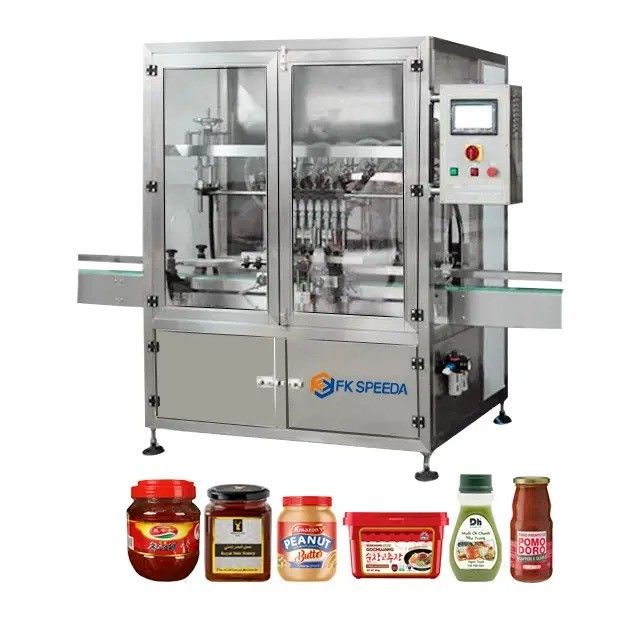

Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
  • Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
  • Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
  • Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
  • Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
  • Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
  • Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine

Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine

Place of Origin Guangdong, China
Brand Name FK-SPEEDA
Certification ISO9001
Product Details
Condition:
New
Type:
Filling Machine
Machinery Capacity:
4000BPH, 2000BPH, 1000BPH, 3000BPH
Applicable Industries:
Garment Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Construction Works , Food & Beverage Shops, Machine
Showroom Location:
Indonesia, Thailand
Application:
Food, Beverage, Commodity, Chemical
Packaging Type:
Cartons, CANS, Bottles, Barrel
Packaging Material:
Plastic, Metal, Glass, Other
Automatic Grade:
Automatic
Driven Type:
Electric&pneumatic
Voltage:
220V/50HZ
Dimension(L*W*H):
1800*1150*1800 Mm
Weight:
350 KG
Warranty:
2 Years
Key Selling Points:
High Productivity
Filling Material:
Beer, Other, Milk, Water, Oil, Juice, Sauce
Filling Accuracy:
±99%
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, Pressure Vessel, Pump, PLC, Other
Filling Speed:
20-70 Bots/min (100-500ml )
Filling Range:
20-100ml;50-200ml;100-500ml;
After Warranty Service:
Video Technical Support,Online Support
Keywords:
Sauce Filling Machine
Bottle Type:
PET Plastic Bottle Glass Bottle
Suitable For:
Honey,syrup,jam, Peanut Butter, Sesame Paste,tomato Sauce, Peper Sauce
Marketing Type:
New Product 2023
Port:
Shenzhen
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$13,000.00/sets 1-2 sets
Packaging Details
1 set/ Polywood case
Supply Ability
1000 Set/Sets per Month
Product Description
Product Overview
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 0

Features:

The production line can widely used to filling,capping and labeling for various semi-liquid,ointment paste, dense catsup and various materials with granule, such as drinks with fruit, honey,syrup,jam, peanut butter, sesame paste,tomato sauce, peper sauce,etc.Operating principle By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filing amount and to achieve accurate filling results.Property The Filling Machine with extra functions is designed and manufactured by our factory with reference to the same kind of foreign machines.
This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.With automatic
transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can
be equipped with protective cover.The part contacting materials is made of 304 stainless steel.Material contact parts can be customized SS316.can install hopper. Hopper can be installed liquid level automatic control system.

Optional Configuration

1. conveyer; 2. CIP tank; 3. mix tank; 4. double jacket tank; 5. Plexiglass
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 1
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 2
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 3
Application
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 4
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 5
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 6
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 7
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 8
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 9
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 10
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 11
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 12
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 13
PRODUCT SPECIFICATIONS
Model
FK-JL6
Filling range
20-100ml,50-200ml,100-600ml,300-1000ml,500-2000ml
Filling speed
30~50 bottles per minute
Power
220V/50Hz 200W
Filling accuracy
Above(within):±1.5%
Air Pressure
0.4-0.6Mpa
PRODUCT CONFIGURATION
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 14
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 15
Electric Pneumatic Driven FK-JL6 Honey Paste Bottle Packing Piston Filling Capping Machine 16
